Lawo displays at NAB an innovative IP network for transporting video, audio and intercom

In addition, it debuts in Las Vegas an interesting virtual radio mixing console and a virtual router for press rooms, completing Lawo's premieres at the fair.

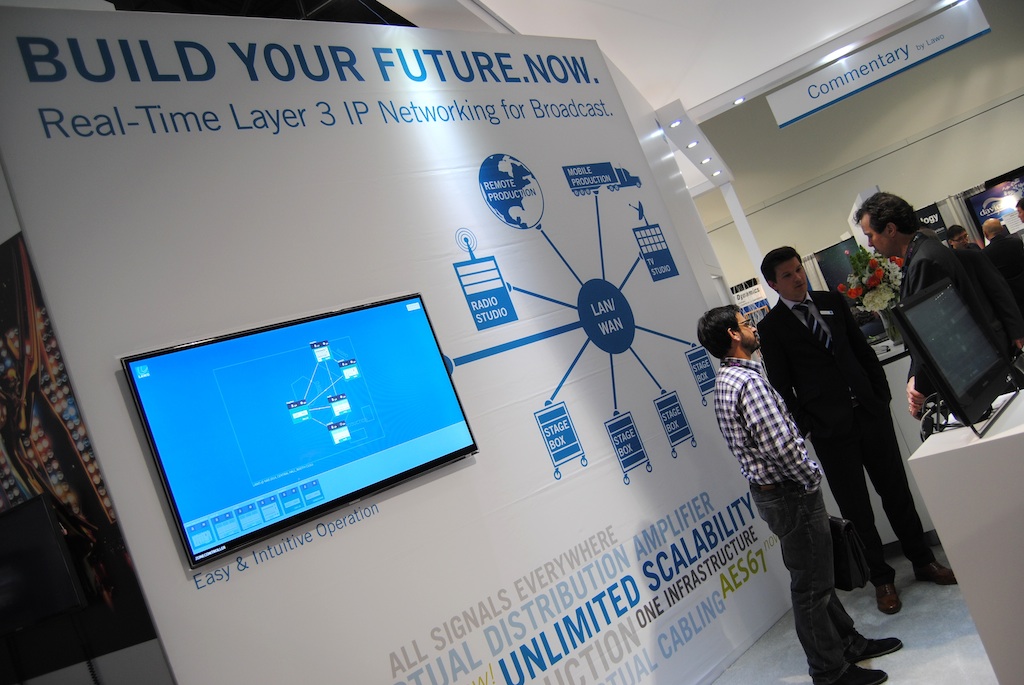

Theirs is carrying out demonstrations at NAB 2014 of a fully IP-based stage with video, audio, intercom and control.

The system is based on Lawo's V__link4 video over IP interfaces and can operate in local stagebox applications, for example a mobile unit, as well as remote IP-based productions.

The demonstration in Las Vegas based on V__link4 focuses on the distribution of video over IP from Lawo interfaces, along with Clear-Com and Riedel intercoms, and Ikegami cameras and CCUs, in addition to the Lawo Dallis audio I/ interface EITHER.

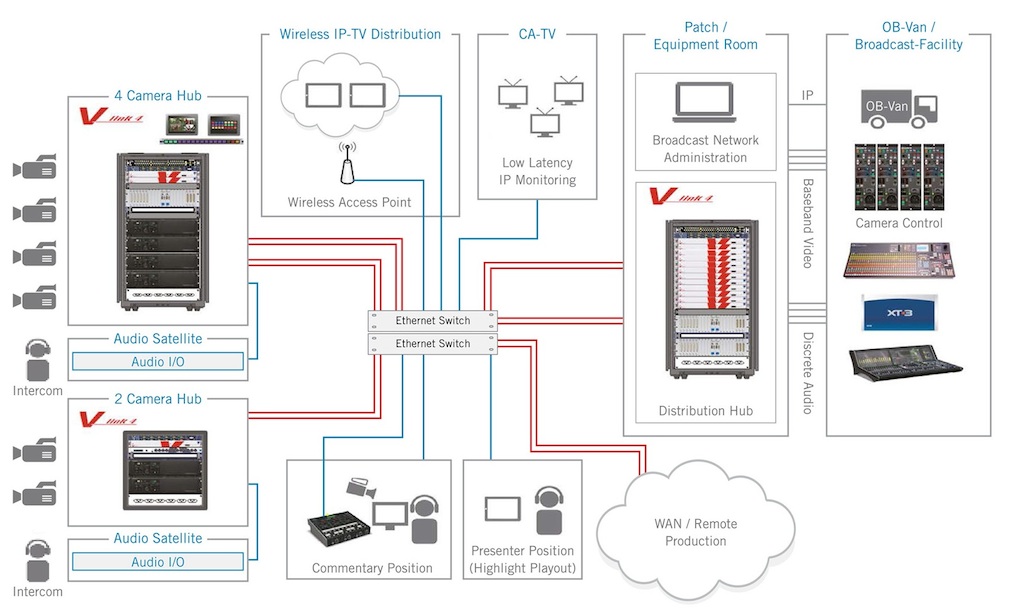

The main concept of this IP ecosystem is to be able to place the camera CCUs in remote locations. Video, audio, communications and camera control data are transported over IP, significantly reducing cabling efforts and increasing the flexibility of any true IP networking installation. Furthermore, this approach reduces complex hardware configurations in a mobile unit, for example.

Lawo's V__link4 is a compact 1RU device, designed for production-quality real-time contribution and distribution of 3G/HD/SD-SDI signals over IP networks. V__link4 provides two 10 Gb Ethernet ports and four 1 Gb Ethernet ports and MADI and Ravenna connectivity. Four encoding engines included in the V__link4 meet the highest demands on video quality and signal transport reliability. Lawo's proposal includes a frame recovery system and parallel redundancy protocol that allows the system to overcome any failure in the single network without compromising data transmission.

The format and quality of IP video streams can be individually configured to satisfy the optimal relationship between image quality, latency and bandwidth. This solution has been designed for the bidirectional transport of four SDI signals, with video over IP encoding and decoding, signal processing and delay rectification.

Virtual audio router

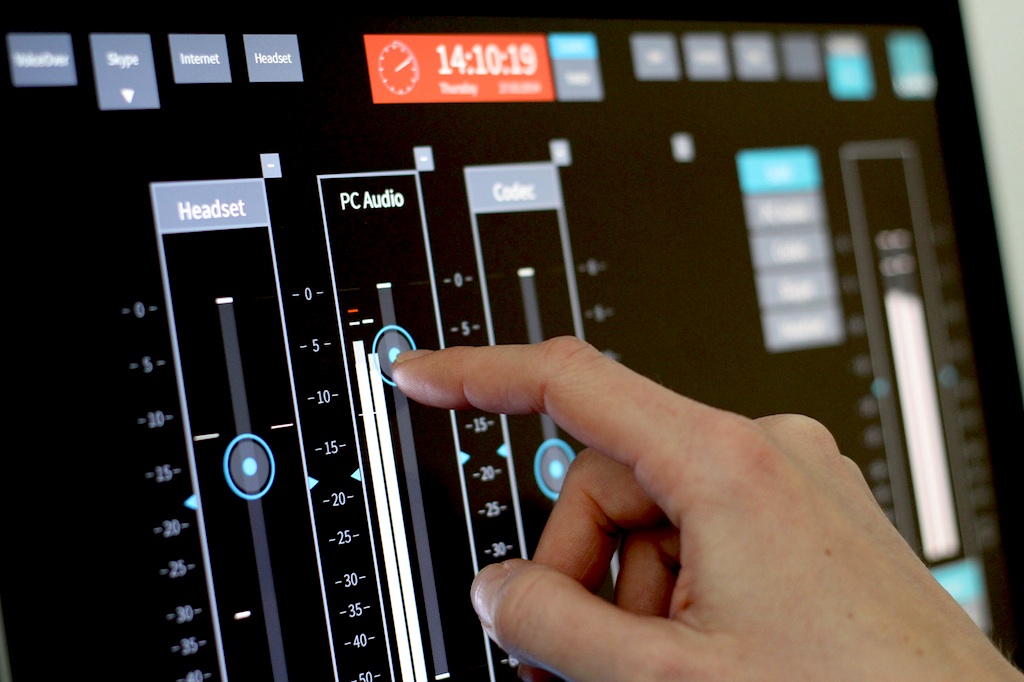

Lawo's virtual audio router, Jade 2.0, is a versatile tool, capable of managing all the audio that enters and leaves the computer. It simplifies workflows when working with multiple audio sources and applications, allowing less technically skilled audio users such as journalists and news editors to operate more independently.

As middleware between a computer's audio sources and applications, this radio software tool provides a unified interface for all audio applications, even when multiple audio hardware paths are included. You can retain addresses for various tasks and remember them immediately. GUI, with its intuitive optimized touch screen, includes long-throw faders for monitor sources and outputs, and large-scale PPM meters to display input and output levels. Sound processing is made easy with JADE's processing presets, which are activated with a simple click.

Jade 2.0 is the ideal tool for press applications, turning journalists' existing computers into easy-to-use production workstations. Instead of producing clips in separate, dedicated editing suites, Jade 2.0 enables a decentralized workflow with journalists producing in parallel from multiple workstations, covering scenarios such as clip editing, recording from live internet streaming , television or radio programs, and conducting telephone interviews using VoIP.

All of this can be done without moving to a professional studio or editing suite. And in editing suites, Jade 2.0 is also the perfect environment for managing voice recordings, live interviews, events that use external lines or codecs or multi-channel editing. Another application is outdoor production. JADE 2.0 turns laptops into mobile audio workstations with all the elements needed to produce in locations such as press conferences, hotel rooms or even sporting or special events.

Jade 2.0 works with up to 12 mono or stereo sources including processing. It supports audio hardware by providing ASIO, WASAPI, WDM or MME drivers and also supports direct ASIO monitoring. Connections to other audio software are provided via four virtual ASIO and four WDM clients. For seamless integration into IP-based studio environments, JADE 2.0 offers original Ravenna audio-over-IP support for receiving up to 16 audio channels and sending up to 12 audio channels over IP networks.

Virtual Radio Mixing Console

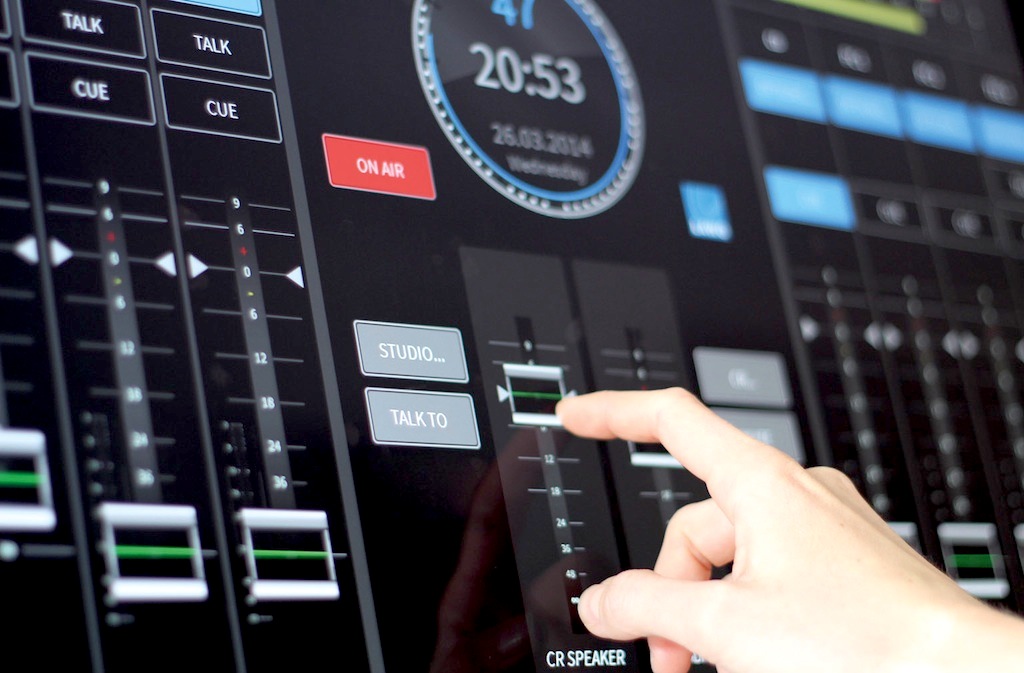

In a world first, Lawo launches at NAB its pioneering CrystalClear, a virtual radio mixing console aimed at optimizing radio workflows through an intelligent console interface that is always context-aware, adapting to the user's skills and type. of sources being used.

Its entire control surface is software, driven by an optimized multi-touch interface on a high-resolution computer display. Without the limitations of physical handles, buttons and faders, the virtual console presents the user with only the relevant controls and information, hiding everything that is not necessary to carry out the task at hand.

Lawo's virtual radio mixing console can be instantly reconfigured by activating a scene or preset. Different shows and users are easily accommodated. And unlike a physical surface, CrystalClear remembers every detail when you load a SCENE, even fader positions. This virtual console is fast, intuitive and easy to operate and configure. It's as easy to use as a tablet PC, yet so powerful that it can handle complex workflows in the most demanding production environments.
