XA25 and XA20: two new Canon proposals for professionals and video enthusiasts

Canon's two new cameras combine a completely new imaging system, with professional audio and Wi-Fi connectivity, in a compact and versatile device that fits perfectly in the palm of your hand.

Canon has expanded its range of handheld camcorders with the launch of two new professional X-series models, the XA25 and XA20. Both cameras combine a completely new and powerful imaging system, with professional audio and Wi-Fi connectivity, in a compact and versatile device that fits perfectly in the palm of your hand.

These models have very efficient features, which provide spectacular quality and handling possibilities. The Canon HD Video system has been completely redesigned, from lens to image sensor and processor, delivering new levels of image performance. A wide range of recording features and advanced connection options make these cameras ideal for both professional and amateur use, allowing you to record anything from news to documentaries to weddings.

First class optics

The XA25 and XA20 cameras offer a completely new imaging system, developed to provide image quality and great versatility. A very innovative new wide-angle lens, with 20x zoom and a focal range of 26.8–576 mm, uses the optical technology applied in the XF305 camcorder, the highest in Canon's range. The enhanced 3-mode Optical Image Stabilizer (OIS) system features a Dynamic OIS mode that further reduces the effects of camera shake during recording. The 8-blade circular aperture also allows for improved 'bokeh' (background blur), using Canon's exclusive Electromagnetic Diaphragm technology (originally developed by Canon for its range of EF lenses) to ensure the achievement of Beautiful images with blurred background in shots with a shallow depth of field.

The new 1/2.84” 2.91 megapixel HD Pro CMOS sensor offers excellent dynamic range and low-light results. The larger sensor size maximizes photosensitive transducer area, thanks to the combination of an advanced image processing system for image noise reduction and increased sensitivity in low-light environments.

The processing power of the DIGIC DV 4 provides improved image reproduction, leveraging the capabilities of the DIGIC DV family, such as smooth grading and faithful color reproduction, enabling recording at higher speeds. data. The sensor and processor work in combination to eliminate the effects of camera shake, enhancing the effects of a highly efficient Optical IS system with electronic stabilization, which detects and compensates for motion in a greater number of directions.

Complete creative control

Designed for maximum flexibility, all new models are compatible with various recording formats. AVCHD format (up to 28 Mbps) and MP4 format (up to 35 Mbps) enable faster bit rates suitable for many professional applications. Video is recorded to separate SD card slots in a range of resolutions and fps (frames per second) rates up to 1080/50p, with slow and fast recording options in MP4 mode, offering greater freedom of choice of video. appropriate setting, depending on creative needs.

All models also allow simultaneous recording in different formats on each card, giving the user the ability to simultaneously record high quality Full HD video in the desired format and in smaller MP4 files. This, made possible by the power of the DIGIC DV 4 processor, allows smaller files to be shared more easily and quickly in cases where time is of the essence, while high quality copies can be saved for later use.
Features optimized for professionals

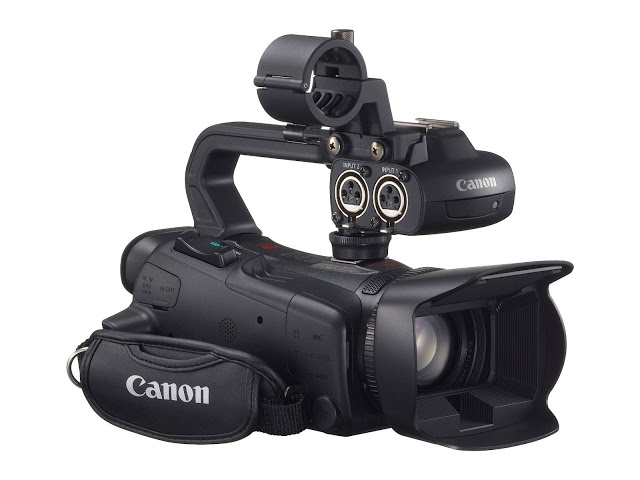

The XA25 and XA20 camcorders incorporate the same detachable handle concept launched with the popular Canon XA10. Very easy to mount and dismount, depending on recording conditions, the top handle has a series of additional controls, including XLR inputs for recording professional-quality sound through external microphones. The handle also features a built-in IR lamp to enhance the recording capabilities of the XA25 and XA20, ideal for recording nighttime documentaries or nature and wildlife at night.

All three new models feature a compact, ergonomically designed body, enabling excellent handling and control during recording. New 8.77 cm (3.5”), 1.23 million pixel OLED (Organic LED) touchscreen display provides higher resolution and contrast, as well as improved color reproduction, both during recording and playback . Users can exercise complete control over exposure, as a combination of the touch screen and customizable control dial can adjust aperture, shutter speed, iris, gain and exposure.

Zoom and focus can be activated using an adjustable ring located on the front of the camera lens. Additionally, a new zoom lever integrated into the camera body is ideal for shooting both hand-held and tripod-mounted, allowing for precise control and the convenience found in professional cameras. larger size. The enhanced 1.56 million pixel, 0.61cm (0.24”) electronic viewfinder (EVF) can be tilted up to approximately 45°, providing outstanding detail and convenience during camera recording. in your hands or placed on a tripod.

Studio connectivity and wireless connection

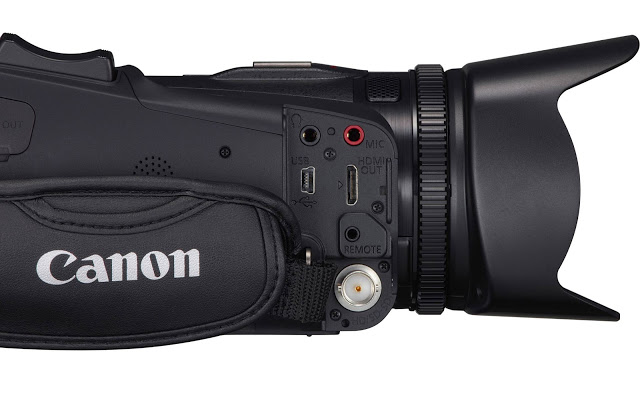

The new XA25 and XA20 feature an advanced array of connections, with physical inputs conveniently grouped and designed to keep connections accessible when cameras are hand-held. All these camcorders have integrated terminals for HDMI, microphone, USB and headphones. The XA25 also has an HD-SDI output, providing a high-capacity, compression-free connection, useful for many professional television broadcast applications.

All three camcorders also offer the novelty of integrated dual-band Wi-Fi (2.4 GHz and 5 GHz), providing many new possibilities during and after recording. The Camera Remote function allows wireless adjustment of various parameters through an Internet browser [5], while the Remote Browser allows users to review the video recorded with the camera from the browsers of a smartphone or tablet, without the need of playback software.

FTP File Transfer allows users to transfer recordings to FTP servers at up to 150 Mbps, using a wireless access point, and with a Media Server, Wi-Fi can be used to play videos saved on a camera on compatible TVs and computers. without the need for cables [6]. It is also possible to upload videos directly with iOS devices using Canon's Movie Uploader app, allowing videos to be uploaded directly to YouTube or Facebook at bit rates of up to 24 Mbps.

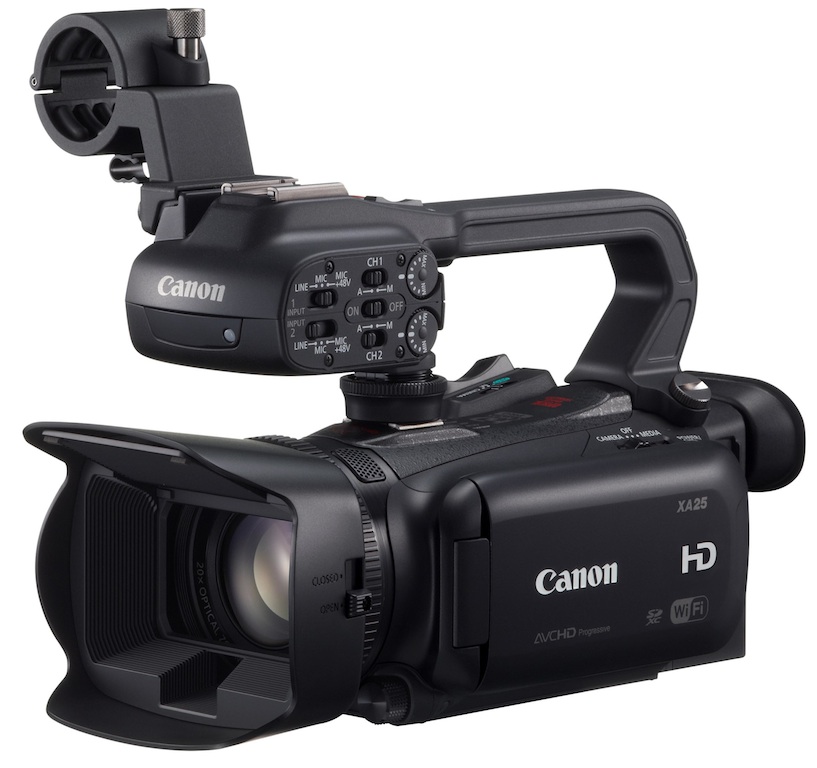

XA25

• 26.8mm lens, f/1.8-2.8, 20x zoom, Dynamic OIS
• Sensor CMOS HD Pro de 1/2,84”
• 8.77 cm (3.5”) OLED touchscreen
• Dual format recording; DIGIC DV4
• Salida HD-SDI
• 1.56 million pixel electronic viewfinder, 45° tilt
• Fast/slow recording
• Built-in IR lamp
• 2 XLR inputs
• Built-in Wi-Fi

XA20

• 26.8mm lens, f/1.8-2.8, 20x zoom, Dynamic OIS
• Sensor CMOS HD Pro de 1/2,84”
• 8.77 cm (3.5”) OLED touchscreen
• Dual format recording; DIGIC DV4
• 1.56 million pixel electronic viewfinder, 45° tilt
• Fast/slow recording
• Built-in IR lamp
• 2 XLR inputs
• Built-in Wi-Fi
