Discovery 1024: new Triton Blue lighting control

The new Triton Blue table allows control of up to 1024 DMX channels and 60 scenes.

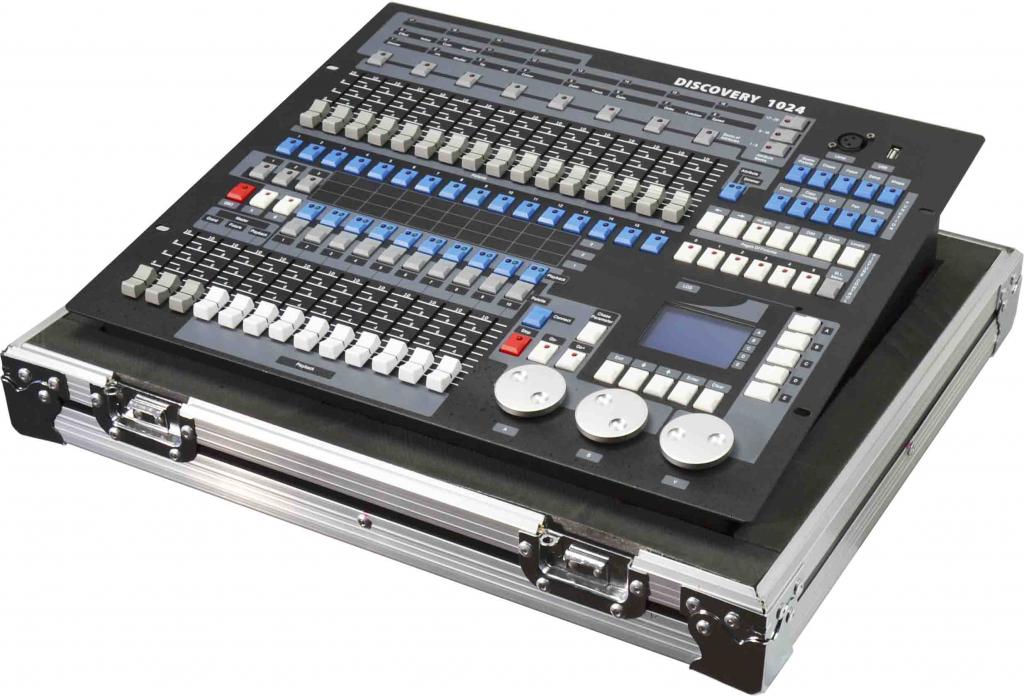

In order to facilitate DMX control of scanners, moving heads, dimmers, LEDs... Triton Blue now has the new Discovery 1024 table.

With all the control power of equipment with a greater number of channels, it is the perfect control table for sets and other stage venues.

With very quick and simple operation, the most complex equipment can be controlled. This ease of use is due in large part to the customization possibilities of its intuitive program.

This table allows the control of up to 1024 DMX channels, and can manage up to 96 projectors. It offers the user a total of 60 scenes, being able to work with a dozen simultaneously and control scenes and dimmer using a sliding fader. Another of its advantages is the possibility of DXM address patching.

Technical characteristics

• DMX512 / 1990
• Up to 1024 control channels
• Control up to 96 smart projectors or dimmer channels
• Internal Shape Generator, with effects such as rainbow, spirals, circles, squares, etc.
• 60 playbacks that can be controlled as scenes or as chases, with programming of up to 600 channels per program
• Display LCD con blacklight
• Output for work lamp
• USB input to load the library
• Power: AC 100/240 volts, 50-60 Hz.
• Medidas sin Flightcase: 485 x 420 x 105 mm

Connections

• 1 power supply input via IEC connector
• 4 DMX signal outputs via 3-pin XLR connector (Neutrik)
• 1 power output for gooseneck lamp via 3-pin XLR connector
• 1 input via USB connector for library and software update
