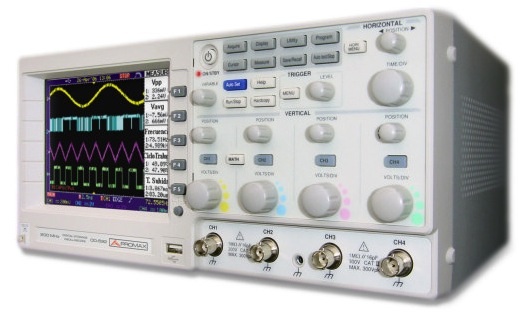

Promax OD-590 and OD-591: high-performance digital oscilloscopes

These oscilloscopes have an equivalent sampling of up to 25 GS/s (1 GS/s in real time) and a bandwidth of up to 200 MHz, depending on the model.

Promax It has a long tradition, experience and recognition in the area of instrumentation for electronic laboratories. Among its portfolio of solutions for test and measurement, the OD-590/91 digital oscilloscopes stand out, which have the highest performance within their market segment.

These oscilloscopes have an equivalent sampling of up to 25 GS/s (1 GS/s in real time) and a bandwidth of up to 200 MHz, depending on the model. You can store measurements on standard USB sticks, connect to a PC, and even run on batteries.

In addition to electronics laboratories, this range of digital oscilloscopes can be used in education, electronic circuit design, technical services of consumer equipment, and in general in any application where it can be useful to visualize and store the trace of an analog or digital signal.

Download PDF with specifications.

Specifications

• Large 5.6-inch color TFT display
• Bandwidth 100/200 MHz
• 2 input channels
• Sampling 1 GS/s in real time and 25 GS/s in equivalent time
• Maximum registration length of 25 k points
• 27 automatic measurements
• Three mathematical functions: "+", "-" and "FFT"
• Multi-Language Interface (includes Spanish)
• 2 USB ports: USB Flash drive storage and printer output
• USB Device: Remote Control via PC
• Battery operation (optional)
• RS-232C interface. Optional GPIB
