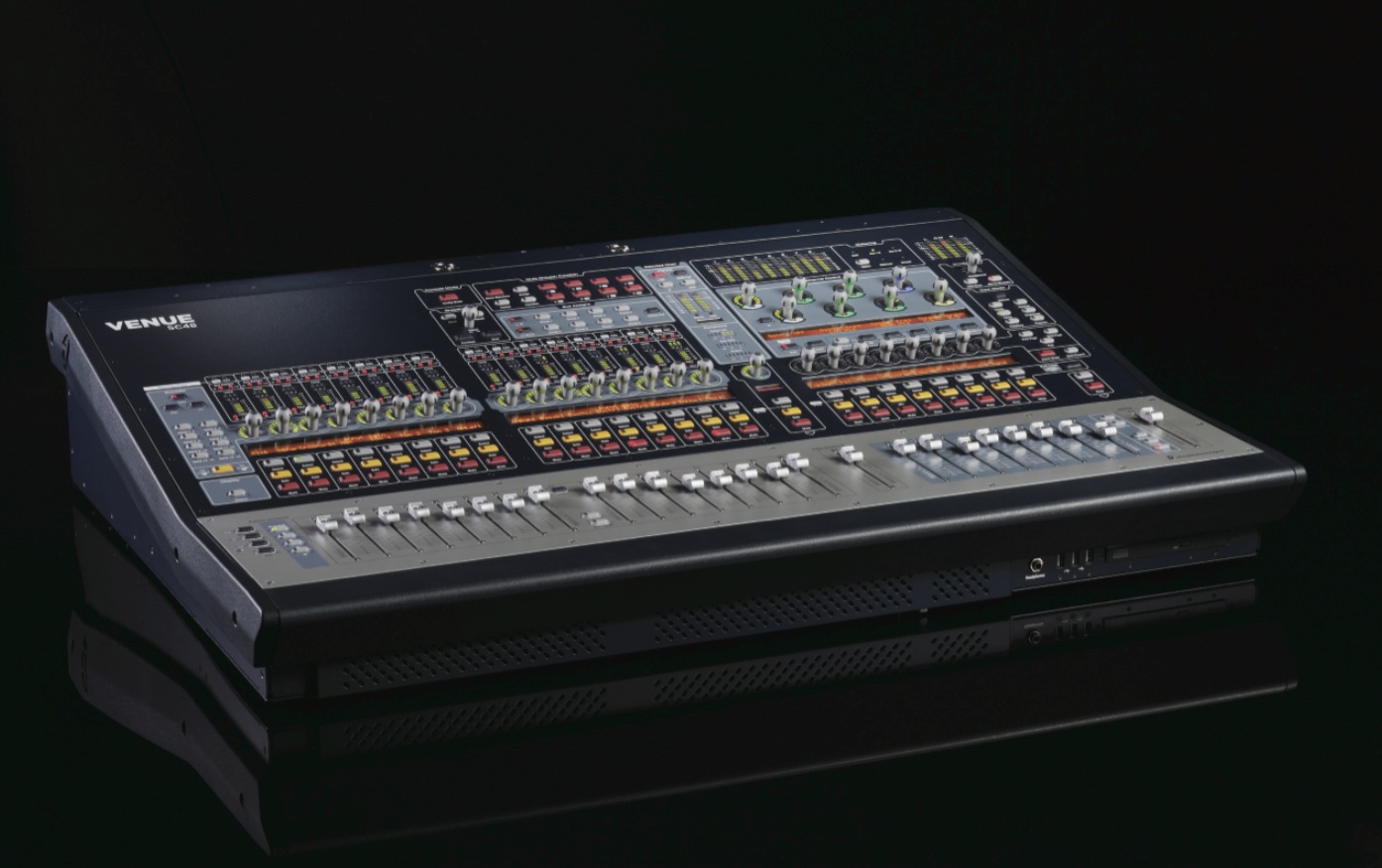

Digidesign Venue SC48, an 'all-in-one' console

The Venue SC48 fully integrated live sound system combines all I/O, DSP processing and touch control into a single compact console, making it an affordable, transportable system perfect for recording audio recording for radio and television in the same place of the event.

Although the Digidesign Venue SC48 console is designed for live performances, there are numerous occasions in which for concert broadcasts on radio and television or in post-production studios, this console becomes ideal due to its easy transport, small dimensions and high performance. The console not only incorporates famous Venue features such as support for studio-quality plug-ins, seamless integration with Pro Tools LE systems and complete concert file portability, offering innovative workflows that simplify the mixing process.

The Venue SC48 is Digidesign's new digital console that provides a compact and complete solution for audio and processing and is intended for small and medium-sized live sound applications, clubs, audiovisual companies and broadcast.

The new Venue SC48 combines 48 inputs and 16 outputs (expandable to 32), digital signal processing, touch control, professional plug-ins from Digidesign and other manufacturers and full compatibility with the Venue family. Direct connection to Pro Tools LE allows the user to record events and also perform Virtual Soundcheck.

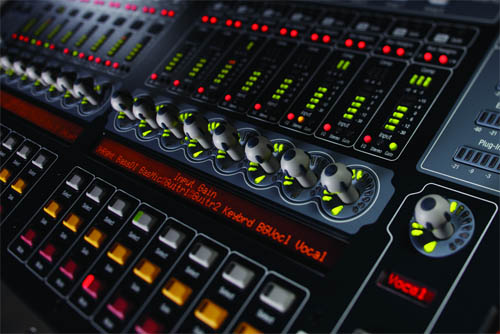

Channel control provides access, visualization and also allows adjustment of each parameter with the press of a single button and in addition, the new group color coding allows immediate access during mixing. The central “Flex Channel” channel allows immediate access to any input considered vital, such as the lead singer's microphone, without having to change layers.

Another interesting function is that when selecting a VCA or a group, all the inputs related to it appear in the adjacent channels without having to search for them through the different layers, making mixing easier and faster.

All Venue systems, including the new SC48, Mix Rack, Profile and D-Show use the same D-Show software so users can use their “Show Files” on any of the systems interchangeably.

An all-in-one system

Venue SC48 brings together all I/O, digital signal processing and mix control into a single compact console, setting a new standard in sound quality, efficient size and price. This fully integrated system allows you to travel light and enjoy Venue's unprecedented sound quality and creativity at any event, or easily replace an analog console by simply adding SC48 to existing wiring. Thanks to its versatility and small size, you can connect stage mics and other inputs and outputs directly to the console, integrate recording and playback in Pro Tools LE to perform Virtual Soundcheck and archive the show, control all software functions seamlessly. remotely via a wired or wireless Ethernet device, and perform front-of-house and monitor mixing using studio-quality processing.

Amazing sound quality

Don't be fooled by its size. SC48 is very powerful, allowing you to create and produce anything from simple to complex mixes with spectacular sound quality. Studio-quality mic preamps preserve audio fidelity and representation for completely transparent sound, while internal processing, such as high-quality dynamics processors and graphic EQ, optimize clarity. And with professional plug-in support right in the console, you can easily recreate and instantly claim a live artist's signature studio sound — no other similarly priced console gives you the amount and variety of sound processing capabilities. available at your fingertips.

Seamless integration with Pro Tools

SC48 features a Pro Tools LE FireWire interface, making it easy to connect to a computer (available separately) with Pro Tools LE software (included with SC48) for recording and archiving live shows or for audio playback. With Venue and Pro Tools you can also perform virtual soundchecks – a process that allows you to play recorded tracks from a previous performance and adjust the mix before the current rehearsal or performance without the band or artists being present.

Powerful innovations in the workflow

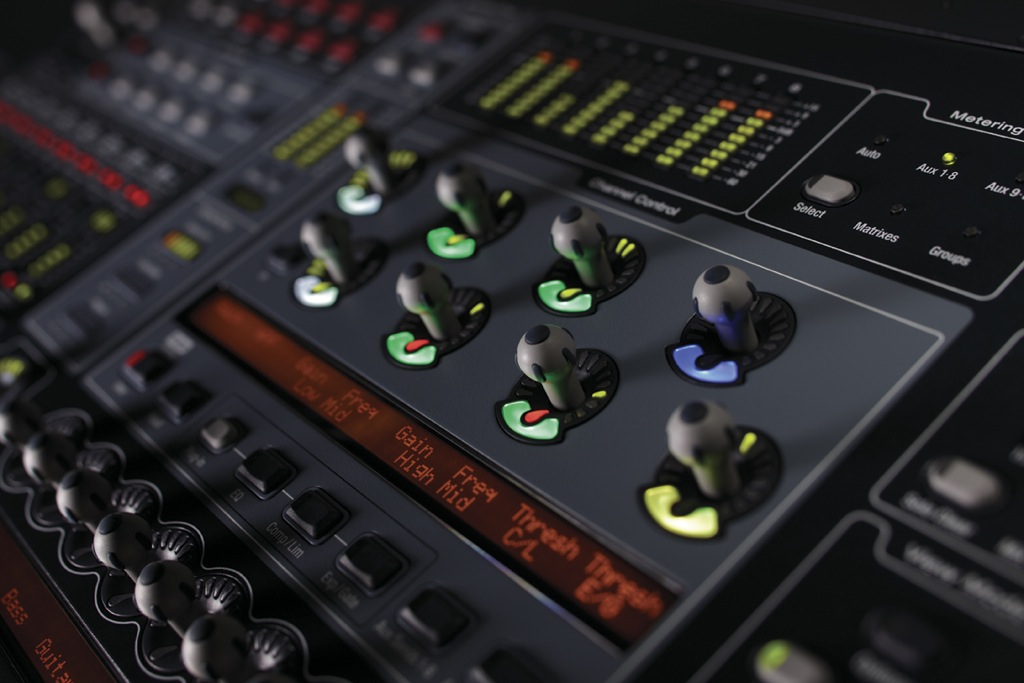

SC48 introduces various new features aimed at optimizing the workflow. Using exclusive Channel Control, the simple press of a button will give you immediate access and control over the function of any channel, including input, EQ and dynamics parameters, and Aux sends, using the console's eight color rotary encoders. Use the exclusive Flex Channel in latch mode to assign and gain permanent access to a specific channel, so you never lose sight of the star of the show. Take advantage of VCA Spill, which provides unprecedented access to specific channels in a mix without having to scroll through banks. And maximize your efficiency by using GPI (General Purpose Interface) I/O and D-Show software to create custom macros, allowing you to perform multiple functions with the touch of a button, step on a pedal, or move a fader.

A software platform

All Venue systems operate under a common software platform – D-Show software, the most complete and easy-to-use control application in the industry. D-Show software sets new levels of efficiency in operation and workflow by providing instant access and absolute control over any system function. Simply press a button on the control surface or click on the screen to access inputs, outputs, concert files, snapshots, patchbays, plug-ins and user options. And because all Venue systems share this same software platform, engineers only need to learn it once on any Venue system, large or small, and will be able to create and upload gig files for use on any Venue system.

Characteristics

• Fully integrated console featuring I/O for stage and auxiliary sources, DSP and touch control for maximum portability
• Compact size adapted to small and medium-sized clubs, theaters, collective activities, corporate events and more
• World-class Venue sound quality delivers stunning audio clarity in any room
• Supports professional audio plug-ins to create studio-quality live mixes
• Includes a Pro Tools LE FireWire interface and system connection software for audio recording and playback
• Includes Venue D-Show, the most complete and easy-to-use control software in the industry
• 48 XLR mic/line inputs, 16 analog line outputs (expandable up to 32)
• Output expansion slot to maximize the number of outputs or add A-Net connectivity
• 16 Aux sends and 8 mono matrices (linkable to up to 4 stereo matrices)
• Choice of Mains Left-Right plus mono or Left-Center-Right bus configuration
• 26 touch-sensitive motorized faders: 16 input, 8 master output, 1 Flex Channel and 1 Mains
• 16 assignable push-switch rotary encoders with multi-segment LED crowns allowing immediate access to main parameters
• Additional I/O, including talkback, analog and 2-track digital, GPI, MIDI and Word Clock

You can take an interactive tour here
